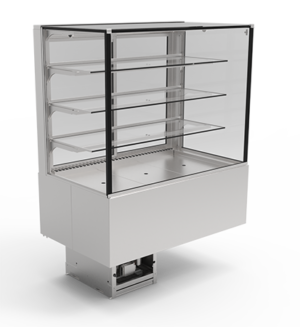

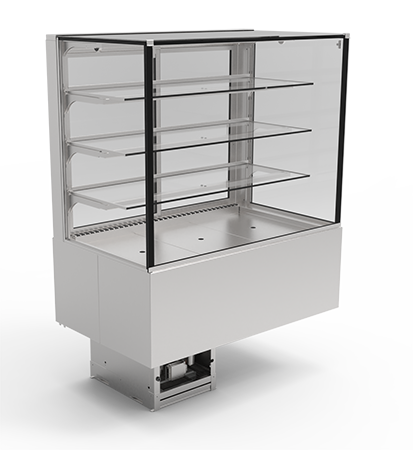

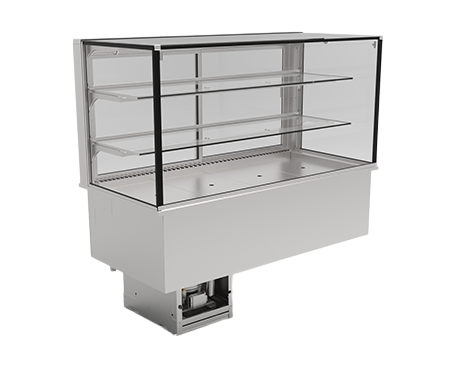

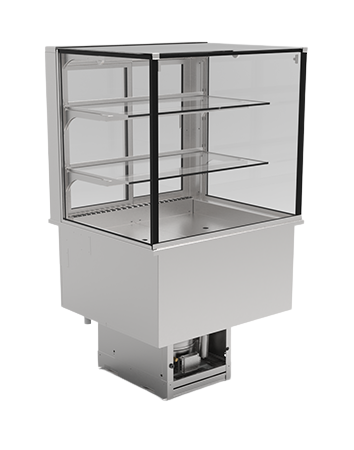

    AKE Green Insulated Glass Drop-In Display

    Premium Energy-Efficient Heated Food Display for Modern Food Service

    The AKE Green Insulated Glass Drop-In is a high-performance chilled food display designed to deliver exceptional food presentation while reducing energy consumption. Featuring advanced insulated glass technology and seamless drop-in installation, this premium display system is ideal for buffets, restaurants, hotels, supermarkets, canteens, cafés, and foodservice counters looking to showcase hot food in an attractive, energy-efficient way.

    Combining elegant design with precise temperature control, the AKE Green Insulated Glass Drop-In helps maintain food quality, extend holding times, and create an inviting self-service or assisted-service display.

    Enhance Food Presentation

    Presentation plays a vital role in encouraging food purchases. The AKE Green Insulated Glass Drop-In provides crystal-clear visibility while protecting food from external contaminants and maintaining ideal serving temperatures.

    Its minimalist glass design creates a premium appearance that complements both contemporary and traditional foodservice environments.

    Quality assured.



    Green Insulated Glass Display

    • Customer side: panoramic window made of insulating glass
    • Operator side: sliding doors made of insulating glass
    • Condensate: Fully automatic condensate evaporation for self-contained model; drain required on-site for remote refrigeration, or a condensate tray as an option
    • Intermediate shelf and base decks, adjustable height and incline.
    • Side windows made of insulating glass.
    • Intermediate shelf made of tempered safety glass.
    • Pressure-foamed inner well, 215 mm deep, welded tight in a hygienic design; wraparound hook-in rim.
    • Condensate drain HD 30.
    • For GN trays 1/1 up to 150 mm.
    • Interior lighting (LED) on each level.
    • Coated, fin coil evaporator with low-voltage fan, can be folded up and rinsed.
    • Control unit with temperature display, speed control of the fans, as well as on/off switch.
    • Remote refrigeration: expansion valve for R134a, connection lines lead out downwards.
    • AIR+2 °C
    • PRODUCT M1: -1 °C to +5 °C
    • SURROUNDINGS+25 °C and max. 60% R
    Document Type

    Energy-Efficient Performance

    The Green Insulated Glass range has been developed to help operators reduce energy consumption without compromising food quality or customer experience. The AKE drop in insulated refrigerated display is designed with these same priorities in mind.

    Benefits include:

    • Lower heat loss
    • Reduced energy usage
    • Improved temperature stability
    • Lower operating costs
    • Sustainable foodservice solution

    For operators seeking to improve efficiency and support environmental goals, the AKE Green Insulated Glass Drop-In offers a practical and cost-effective investment.
